LED Magic Mesh

Product Item： P25 Fabric Net
Grayscale:8 bit
Brightness:2000nits
Voltage:DC 12V
Ingress Protection:IP40

Product description： 360° RGB LED Magic Mesh Fabric Net for Wrapping & Sculptures,designed with a flexible, fabric-like structure, allowing them to bend in multiple directions and wrap around uneven surfaces, such as rocks or trees. the ultra-lightweight fabric LED disp

Description

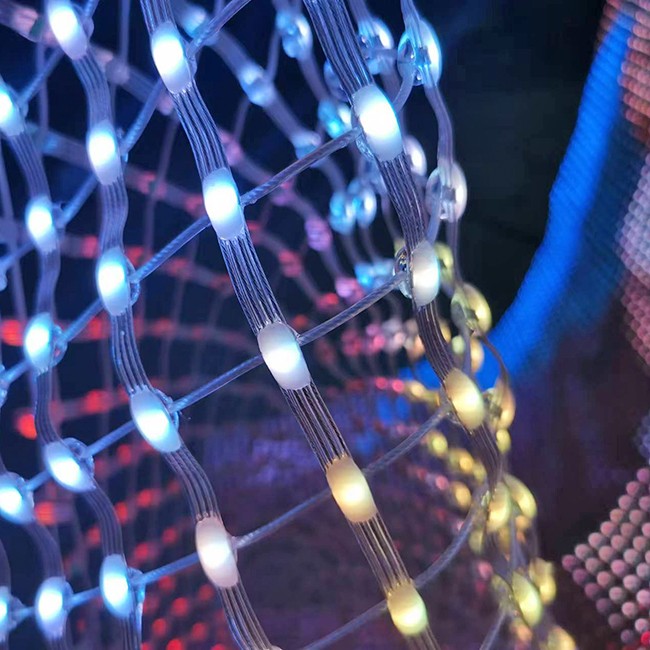

P25-Flexible LED Mesh Magic Fabric Screen

Experience the ultimate in dynamic LED lighting with our P25 Flexible LED Mesh Fabric Display Screen. Designed for versatility and performance, this 8 Bit display offers seamless control via the Novastar Wifi-App, ensuring captivating visuals for events, stages, and architectural displays. With roll-able media illuminated curtain walls, transport and installation are a breeze. Elevate your visual experiences to new heights with our innovative LED display solution.

The mesh flexible design supports various shapes, including curves, arches, and custom forms.

High transparency allows light and effects to pass through, creating stunning visuals.

Tool-free connections enable quick setup and removal of large screens

8 bit color Resolution,3840 hz, 2000 nits Brightness,ideal for building facade lighting, nightclub ceiling decoration, shop front elevation display,video wall, party and event curtain light. It's designed with a flexible, fabric-like structure, allowing them to bend in multiple directions and wrap around uneven surfaces, such as rocks or trees.

Technical Specification

LED Magic Mesh Fabric
Item	P20LMP	P25LMP	P50LMP	P100LMP
Pixel Pitch	20mm	25mm	50mm	100mm
Pixel Type	SMD3550×1
Pixel Density	2500 dot/㎡	1600 dot/㎡	400 dot/㎡	100 dot/㎡
Drive IC Characteristics	Breakpoint Resume
Grayscale Level	8bit (256)
Screen Brightness	5000 cd/㎡	3600 cd/㎡	1000 cd/㎡	300 cd/㎡
Contrast Ratio	1:1000	1:1000	1:600	1:200
Horizontal Viewing Angle	360°
Vertical Viewing Angle	360°
Best Viewing Distance	20-3000 m	25-3000 m	50-3000 m	100-3000 m
Maximum Power Consumption	320 W/㎡	200 W/㎡	50 W/㎡	15 W/㎡
Average Power Consumption	170 W/㎡	120 W/㎡	35 W/㎡	10 W/㎡
Product Weight	1.9 kg/㎡	1.1 kg/㎡	0.4 kg/㎡	0.16 kg/㎡
Refresh Rate	3840 Hz
Power Supply Voltage	DC12V
Drive Current Mode	Constant current / Remote V2.0
Life Span	≥50000 H
Transparency	50%	70%	80%	95%
Ingress Protection	IP65
Product Material	UV-resistant PC

Control by Novastar

The LED mesh control system is compatible with Novastar products used worldwide. Supporting USB, HDMI, wireless distribution (smartphone, PC)distribution and management.
