P15.625 Media Mesh

  • Product Item：P15.625 mm
  • Grayscale:16bit/65536
  • Brightness:7200 nits
  • Voltage:DC 5V
  • Cover Lens:Flatt dome (PC)
  • Product description：P15.6 Square LED Media Mesh Screen with flat dome (PC) Cover Lens,the square dot ,with 4 LEDs per dot casing,waterproof or weather-resistant design, to create visually stunning backdrops or stage displays. Flexible Square Digital Media.
    • led media mesh  , media dot  , led mesh  , led media dot  , led pixel screen  , Media façade  , Transparent Media Façade  , Flexible LED Curtain  , Flexible led display  , LED mesh curtain  , Soft LED display  , Transparent LED mesh
    Inquiry Send Email

    Description

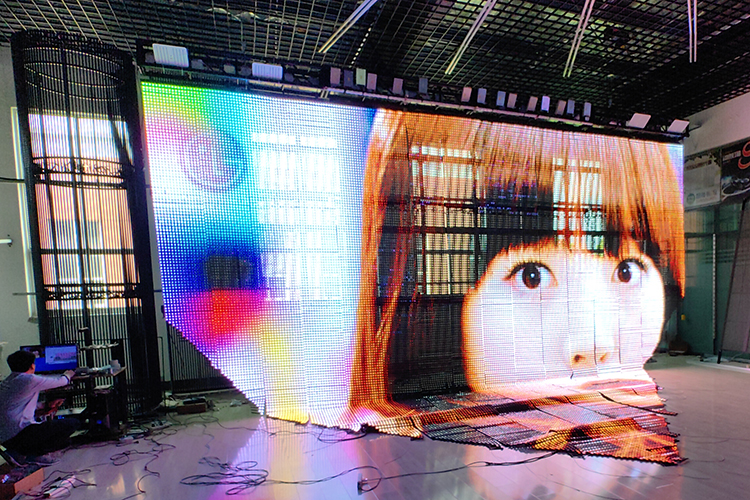

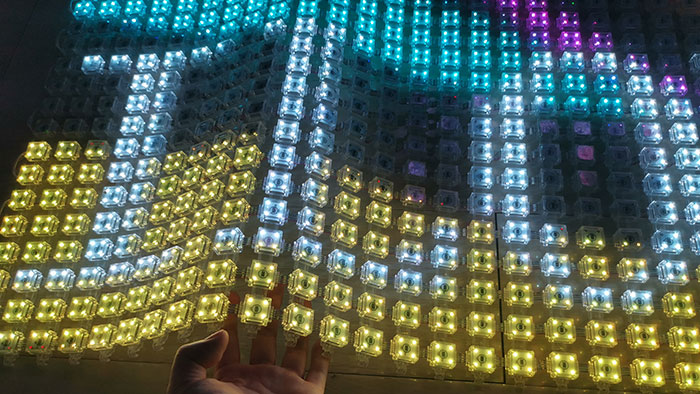

    P15.6 LED Media Mesh Flexible Video Curtain

    Outdoor Video Mesh Display Screen, 16 Bit, DC5V, actual pixel pitch 19*12mm

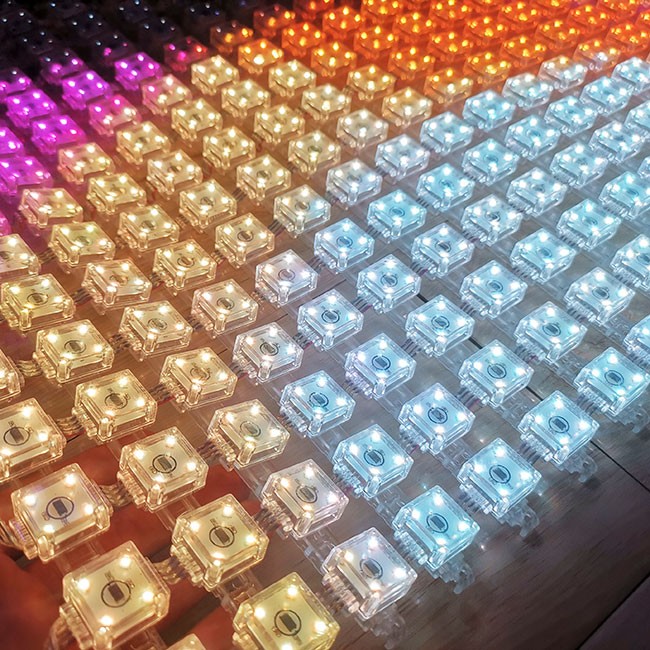

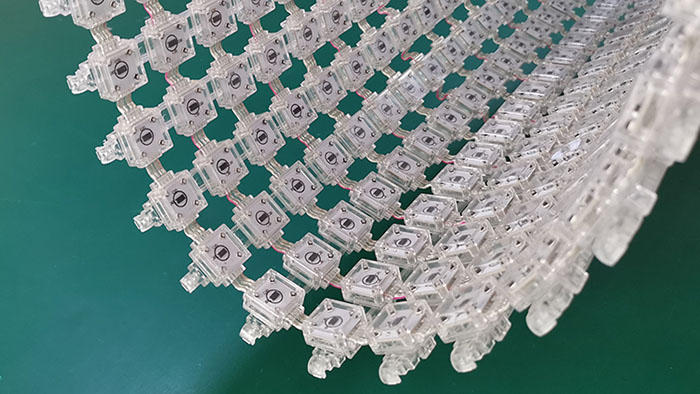

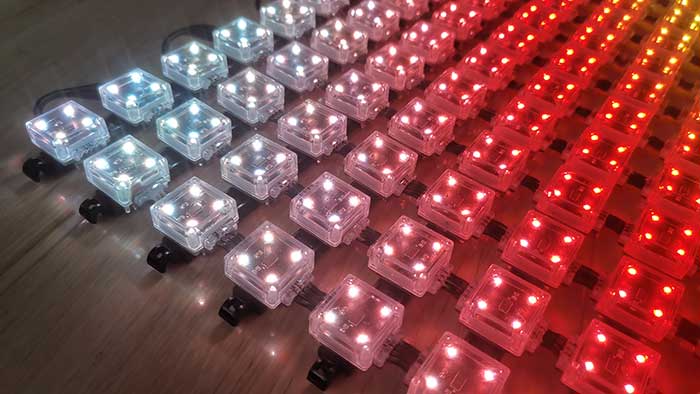

    P15.6 Square Digital Media Mesh with flat dome (PC) Cover Lens, the square dot, with 4 LEDs per dot casing, waterproof or weather-resistant design, to create visually stunning backdrops or stage displays.


    Control by Novastar

    The LED mesh control system is compatible with Novastar products used worldwide. Supporting USB, HDMI, wireless distribution (smartphone, PC)distribution and management.




    800/1200 Watt PSU+32/64 Universe Sub-controller(Prebuild Novastar Receiving Card)

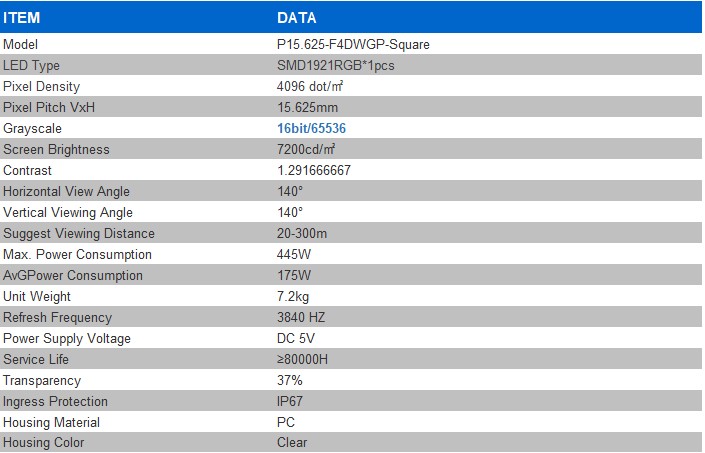

    Technical Specification

    Specification Details
    Model P15.625–Square
    LED Type SMD1921RGB*1pcs
    Pixel Density 4096 dot/㎡
    Brightness 7200 nits
    Refresh Rate 3840Hz
    View Angle 140°
    Contrast 1:1800
    Voltage DC5V
    Power Consumption (Max) 445W/㎡
    Power Consumption (Avg) 175W/㎡
    IP Rating IP65 (Front), IP54 (Rear)
    Lifespan 100,000 hours



    White or Black PCB Option


    How to install or control P15.625 Flexible LED Mesh Curtain Screen?

    1. Determine the installation location and ensure a sturdy support structure.
    2. Prepare the mounting surface by cleaning and making it even.
    3. Mount the support structure securely on the surface.
    4. Carefully attach the LED Curtain to the support structure.
    5. Connect the power supply to the LED curtain.
    6. Test the installation to ensure proper functioning.
