Description
P50-3Lamp Flexible LED Mesh Curtain Display
Experience the ultimate in dynamic LED lighting with our P50 Flexible LED Mesh Curtain Display. Designed for versatility and performance, this TM1935 IC 12Bit display offers seamless control via the Novastar Wifi-App, ensuring captivating visuals for events, stages, and architectural displays. With roll-able media illuminated curtain walls, transport and installation are a breeze. Elevate your visual experiences to new heights with our innovative LED display solution.

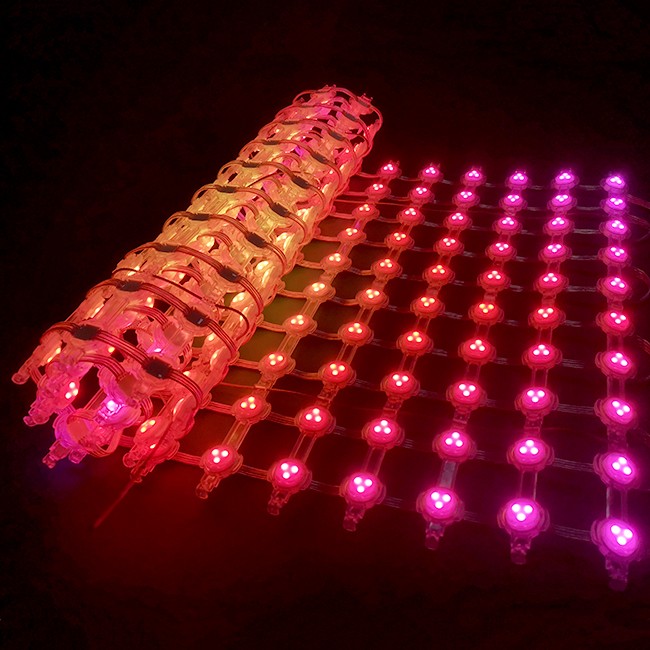

The mesh flexible design supports various shapes, including curves, arches, and custom forms.
High transparency allows light and effects to pass through, creating stunning visuals.
Tool-free connections enable quick setup and removal of large screens
12 bit color Resolution, 3840hz, 4800nits Brightness, ideal for building facade lighting, nightclub ceiling decoration, shop front elevation display, video wall, party and event curtain light.
Technical Specification
P50 LED Mesh Screen
Item
Data
Data
Product model
P50GH
P50GH-3D
Pixel
SMD 2222 (gold wire) *1pcs
SMD 2727 *3pcs
Pixel density
400 dot/㎡
Pitch
50mm
50mm
Drive IC characteristics
Break Point Resume
Color level
16bit/65536 levels
12bit/4096 levels
Screen brightness
1800cd/㎡
4200cd/㎡
Contrast
‘1：800
’1：1200
Beam angle(H*V)
140° *140°
Best viewing distance
50-3000m
Maximum power
95W
285W
Average power
50W
150W
Product weight
3.2kg
3.3kg
Refresh frequency
3840 Hz
Power supply voltage
DC5-7.5V
DC12V
Drive current
Constant current (gain)
Service life
≥80000H
Transmittance
60%
Waterproof grade
IP66
Product material
PC
Control by Novastar
The LED mesh control system is compatible with Novastar products used worldwide. Supporting USB, HDMI, wireless distribution (smartphone, PC) distribution and management.
800/1200 Watt PSU+32/64 Universe Sub-controller(Prebuild Novastar Receiving Card)
