Description

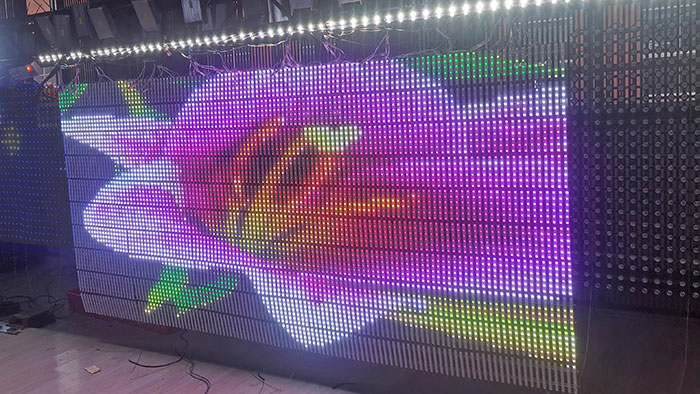

P25 Flexible LED Mesh Curtain Display Screen

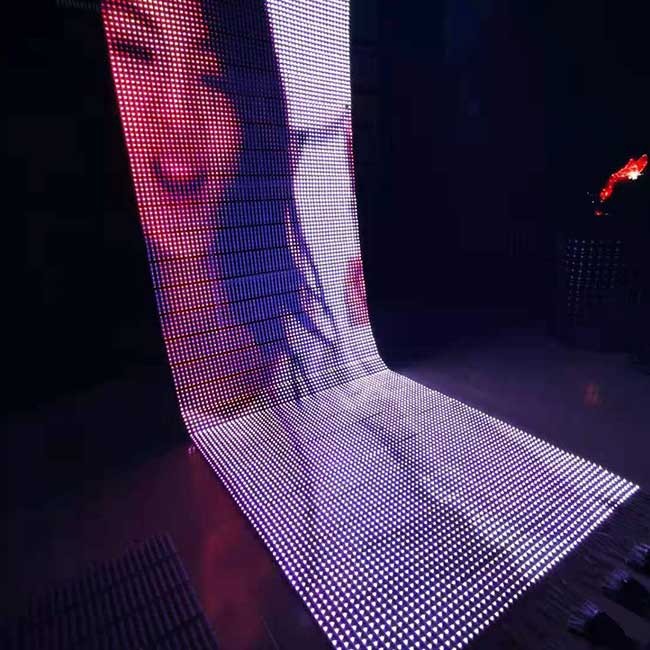

The P25 LED mesh curtain display screen is a cutting-edge LED technology solution, delivering high brightness and contrast for stunning image displays. Perfect for weddings, concerts, exhibitions, and corporate events, its unique mesh design is lightweight, easy to install, and allows for flexible adjustments to fit different spaces and requirements.
Download
Technical Specification
|
P25 LED Mesh Screen |
||
| Model | RGB | RGBW-16bit |
| Application | Outdoor/Indoor | |
| LEDs/Pixel | SMD3535*1 | SMD5050RGBW*1 |
| Pixel Density | 1600 | |
| Horizontal pitch | 25mm | |
| Vertical pitch | 25mm | |
| Grayscale | 12bit (4096) | 16bit (65536) |
| Brightness | 5500 nits | 6800 nits |
| Contrast | 1:2000 | 1:1500 |
| Horizontal viewing angle | 130° | 140° |
| Vertical viewing angle | 130° | 140° |
| Scan | Static | Static |
| Maximum power consumption | 130 W | 140 W |
| Average power consumption | 400 W | 480 W |
| Unit weight | 5.8 kg | 6 kg |
| Refresh frequency | 3840 Hz | |
| Power supply voltage | DC12/15V | DC5V |
| Life span | ≥80000H | |
| Transparency | 45% | |
| Ingress protection | IP67 | |
| Housing & Base Material | PC | |
| Housing Color | Clear/Black | |
Control by Novastar
The LED mesh control system is compatible with Novastar products used worldwide. Supporting USB, HDMI, wireless distribution (smartphone, PC) and management.
800/1200 Watt PSU + 32/64 Universe Sub-controller (Prebuild Novastar Receiving Card)
Versatile
DJ Booth Led Screen

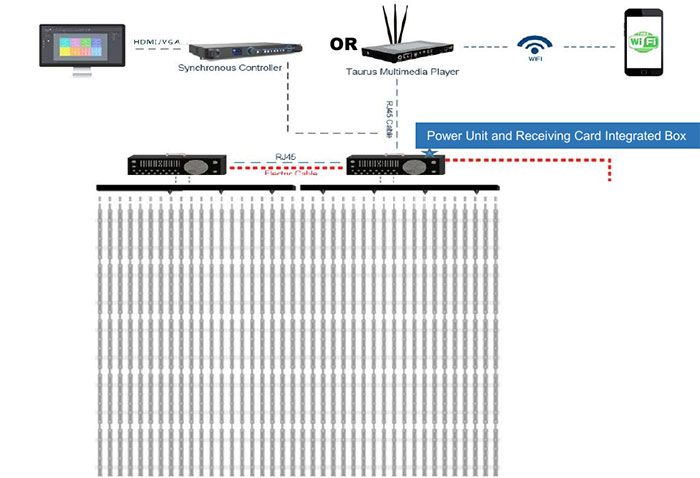

Wiring Diagram

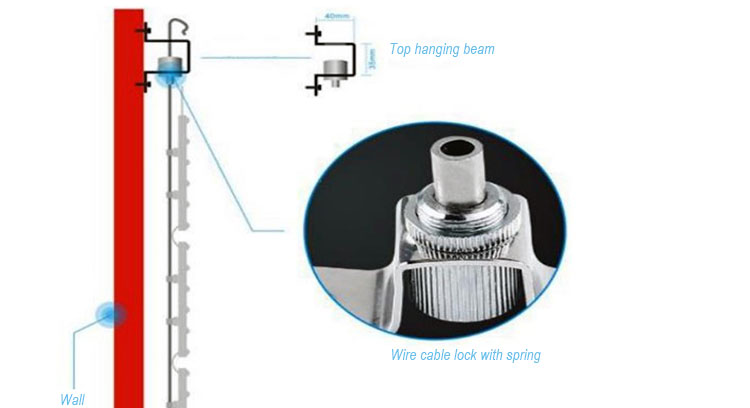

Installation
(Wall mount and Ceiling Free hanging)
