Description

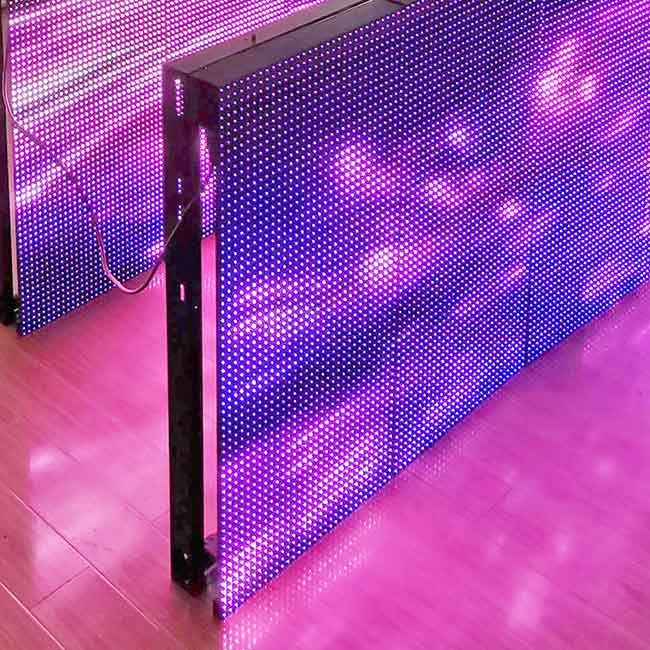

P15.625 LED Mesh Panel, Video Wall Display Screen
The P15.625 Mesh Cabinet is an exceptional outdoor LED panel intended for permanent installations, boasting an impressive transparency rate of up to 65%. With this level of transparency, it becomes an ideal solution for large-scale digital signage adorning the exterior of buildings, prominent outdoor architectural structures, and even imaginative lower resolution applications. Our cutting-edge SMD LEDs emit high brightness, overpowering the impact of direct sunlight, ensuring that your display remains consistently vibrant and visible.
The design of the P15.625 Mesh Cabinet is remarkably slim and lightweight, offering several advantages for installation. Firstly, it simplifies the process, making it more convenient and cost-effective for you. Additionally, our Quick Lock System streamlines the attachment process, enabling effortless mounting onto a standard T-Slot Aluminum Extrusion. This convenient feature saves valuable time and effort, allowing for smooth and hassle-free installations.
Technical Specification
| Model | P15.625 |
| LED Type | SMD 3535 (1R1G1B) |
| Pixel per m² | 64x64 |
| Pixel Pitch (H/V) | 15.625mm |
| Cabinet Size | 1000x1000x120 mm |
| Grayscale | 16 bit |
| Brightness | >7500 nits |
| Refresh Frequency | 3840 hz |
| IC Type | ICN2038s |
| View Angle | H 140° V 140° |
| Temperature | -40~80°C |
| Transparency | 65% |
| Suggested View Distance | ≥15-500 m |
| Max. Power Consumption | 550 w/m² |
| Avg. Power Consumption | 160 w/m² |
| Cabinet Material | Aluminum alloy |
| Connection | Signal & Power one cable |
| Power Supply | 100-240V |
| Drive Voltage | 12 V/DC |
| Control System | Novastar |
| LED Brand | Epistar/Nationstar |
| Unit Weight | 14 kg/m² |
| Fixing Direction | Vertical |
| Maintenance | Front or Rear |
| Ingress Protection | IP67 |
| Warranty | 3 years |
Control by Novastar
The LED mesh control system is compatible with Novastar products used worldwide. Supporting USB, HDMI, wireless distribution (smartphone, PC) distribution, and management.
