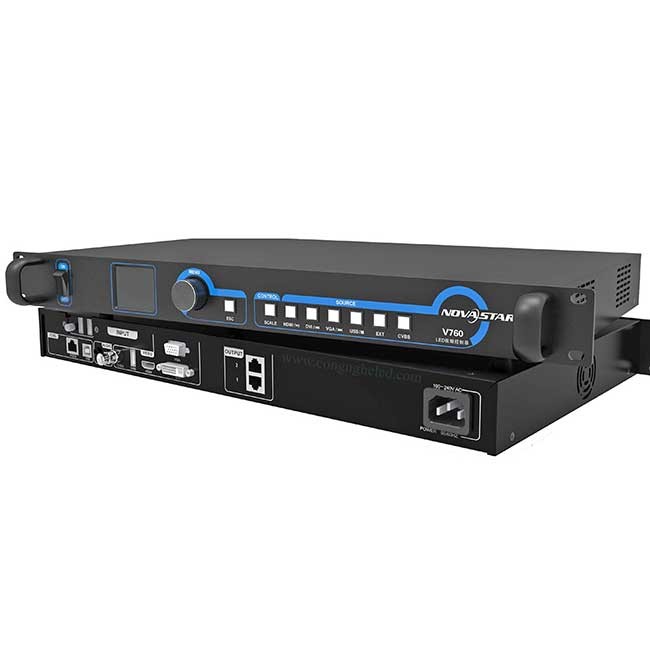

NovaStar V760 LED Video Player
Novastar V760 video display controller is a simple and 2-in-1 video processor.It supports HD multi-type interface input,CVBS × 1, VGA × 1, DVI × 1, HDMI × 1, USB × 1. Novastar V760 LED video processor integrates powerful LED display control technology and video processing to simplify application of LED display. It is usually used for shopping malls, hotels, exhibitions, television studios and other application.
Feature:
Supports window position, size adjustment, and window capture functions.
• Supports one-key switching of input sources.
• Supports external independent audio.
• Supports preset and custom adjustment of input resolution.
• Supports three scaling modes: full screen scaling, point-to-point display, and custom scaling.
• Supports quick screen configuration with simple operation.
• Supports 2 network port outputs, with a maximum load of 130 million pixels.
• Supports the creation of 6 user scenes as templates for direct use.

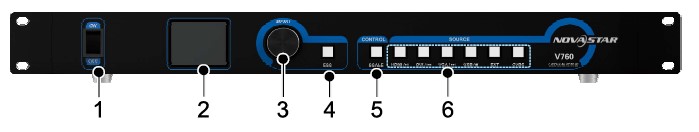

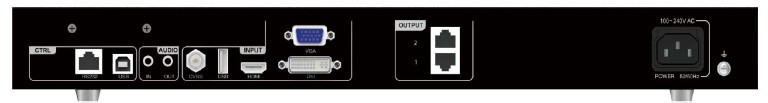

Appearance:
1. Power Button The power button of the device.
2. LCD Screen Used to display the current status of the device and set menus.
3. Knob • Press the knob to confirm or enter the sub-menu.
• Rotate the knob to select menus or adjust parameters.
4. Back Button Exit the current menu or operation.
5. SCALE Shortcut key for full screen zoom.
6. Input source Explanation of input source keys
• HDMI: HDMI input source key, used as pause or play when playing from a USB drive.
• DVI: DVI input source key, used as select previousS fielel wehcetn tphlaeyi npg rfreovmi oa UuSsB dfirlivee . to play the current file.
• VGA: VGA input source key, used as select next file when plaSyienlge fcrot mth ae U SnBe dxrtiv fie.l e to play the current file.
• USB: USB input source key, used as stop playback when playing from a USB drive.
• EXT: Reserved key.
• CVBS: CVBS input source.
Status of signal input source
• The indicator light is on continuously, indicating that a signal source is connected and in use.
• The blinking indicator light indicates that the interface is in use but there is no signal source.
• The indicator light is off, indicating that the signal source is not in use.
Prerequisites
• The display screen is a regular screen, not an irregular screen.
• The display screen's enclosure is regular, and the resolution of each enclosure is the same.
• The connections between the enclosures of the display screen can be made in the following ways, and the wiring of
each network port can be connected downward in the same direction, and cannot be wired arbitrarily.
• When setting the wiring method, it must be ensured that the starting position of network port 1 is the starting position of the entire wiring.
Operating steps
Step Connect the power supply to the display screen.
Step Connect a playable input source to V760 and set the connected input source as the current input
source in 'Input Settings > Input Source'.
Step Press the knob to enter the menu interface, and rotate the knob to select 'Advanced Settings > Quick
Point Screen' to enter the 'Quick Point Screen' interface.
Step Set the 'Box Row Number' and 'Box Column Number' according to the number of rows and columns in the screen cabinet.
Step Rotate the knob to 'Network Port 1 Load Box Number' and set the number of boxes loaded on Network Port 1.
Explanation:
The number of boxes loaded on Network Port 1 must be greater than or equal to the number of boxes loaded on Network Port 2.
The number of boxes loaded on each network port must be a multiple of the number of rows or columns in the display screen cabinet.
Step Rotate the knob to 'Screen Wiring Method (Front View)' and press the knob to select the screen
wiring method based on the actual wiring method of the screen.
When setting the wiring method, the knob can preview the effect of different wiring methods on the display screen in real time. If all the
panels of the screen spliced by the cabinets are displayed normally without overlap or repeated display, press the knob to save the settings
. If the return key is pressed directly, the current operation will be exited without saving the previewed wiring method.
